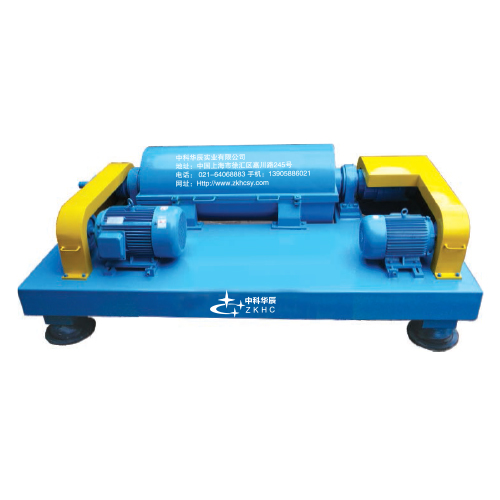

Sludge dewatering system is sludge dewatering host of key equipment, namely horizontal spiral centrifuge discharge settlement (referred decanters), it is the use of the principle of separation equipment centrifugal sedimentation of suspended solids. Equivalent diameter of the solid particles ≥3um, weight or volume concentration ratio ≤10% concentration ratio ≤70%, liquid-solid density difference) various suspension 0.05g / cm3 are suitable for the use of such liquid-solid separation centrifuge.

· Company's decanters have LW250, LW300, LW355, LW400, LW450, LW500, LW530, LW580, LW650, LW760, LW900 11 series over 100 kinds of models.

· The rotor agencies have thickening, dewatering, grading, clarify other models, it can be widely adapted to different separation requirements.

· The company also according to the special requirements of users, following the selection of equipment and design and manufacturing tasks, welcomed by users of the company to carry materials to sample and test pilot.

· In recent years, the company has developed a large aspect ratio, large cone angle + BD board decanters. Since the settlement area extended drum, material separation time has been extended, and thus significantly improve the solid-liquid separation.

Features:

1, drum and other major parts are corrosion resistant stainless steel;

2, conveying screw wear special measures can spray carbide inserts, carbide protective layer or sheet resistance;

3, large aspect ratio, high speed. Drum tapered portion structure with a variety of angles;

4, the choice of heavy-duty, large transmission ratio cycloid, planetary gears or hydraulic differential;

5, differential speed and torque can vary the concentration of material, flow changes automatically adjust the computer control system;

6, the horizontal band BD board Decanter centrifuges, can be of various different proportions of primary sedimentation, activated sludge separation and concentration, dehydration, and difficult to separate the materials.

Drive combinations:

I company for the specific context and requirements, developed a variety of centrifuge drum and propeller combinations:

Using two AC inverter motor + two inverter-driven drum and spiral respectively, by adjusting the motor speed adjustment Vice differential speed. Another increase in differential speed automatic control;

Application:

The list below is only part uses various materials, a variety of new uses is increasing. Through testing or analogy, to determine the appropriate type and technical parameters of the centrifuge for a particular material.
