Horizontal Screw Centrifuge (referred decanters) is the use of centrifugal sedimentation principle separated suspension equipment. For solid particles equivalent diameter = 3um, weight concentration ratio: 10% or 70% volume concentration ratio = liquid-solid proportion of poor: various suspension 0.05g / cm3 are suitable for the use of such liquid-solid separation centrifuge or granules classification.

The company's decanters have LW-250, LW-350, LW-430, LW-450, LW-500, LW-550 series of six eleven kinds of specifications, and flows into the rotor structure, countercurrent, complex spiral, two-way squeeze, etc., on purpose, there are thickening, dewatering, grading, dewatering whole other models, it can be widely used in chemical, light industry, pharmaceutical, food, environmental protection and other industries.

The company also according to the special needs of users, following the selection of equipment and design and manufacturing. Welcome users to carry materials to this company sample and pilot testing.

Features:

  1, drum and other major parts are corrosion resistant stainless steel;

  2, conveying screw wear special measures can spray carbide inserts, carbide protective layer or sheet resistance;

  3, large aspect ratio, high speed. Drum tapered portion structure with a variety of angles;

  4, the choice of heavy-duty, large transmission ratio cycloid, planetary gears or hydraulic differential;

  5, differential speed and torque can vary the concentration of material, flow changes automatically adjust the computer control system;

  6, the horizontal band BD board Decanter centrifuges, can be of various different proportions of primary sedimentation, activated sludge separation and concentration, dehydration, and difficult to separate the materials.

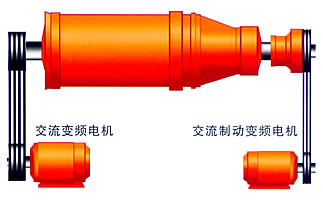

Product structure diagram:

Drive combinations:

I company for the specific context and requirements, developed a variety of centrifuge drum and propeller combinations:

Using two AC inverter motor + two inverter-driven drum and spiral respectively, by adjusting the motor speed adjustment Vice differential speed. Another increase in differential speed automatic control;

Application:

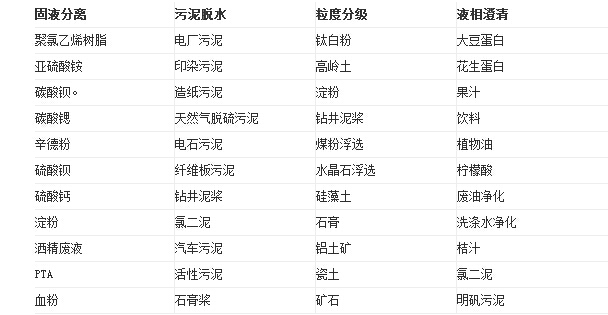

   The list below is only part uses various materials, a variety of new uses is increasing. Through testing or analogy, to determine the appropriate type and technical parameters of the centrifuge for a particular material.
