Main features:

1, the use of frequency control, stable, the separation coefficient is adjustable.

2, Package discharge, grain is not easy broken; low labor intensity, high efficiency; wide versatility, range.

3, reasonable structure design, structure transition is smooth, the surface has been polished, effective elimination of a health corner, external structural components, fasteners are made of stainless steel. Shell clamshell, can centrifuge drum shell and mezzanine space for thorough cleaning.

4, frame and case are welded structure, high bearing strength.

5, base for the flat structure, reducing the center of gravity of the machine, a smaller installation space, flat base serve as a platform, the operation is more convenient.

6, configuration liquid damping shock absorber, damping effect, simplifying routine maintenance.

7, shell flip, set the feed pipe, wash pipe, mirrors, lighting hole.

8. Cleaning system (optional), can centrifuge centrifuge housing interior wall, the inner and outer surfaces of the drum, sump surface is not visible parts cleaning to ensure cleanliness requirements, meet the GMP standard.

9, enclosed structure, sealing with silicone rubber or fluoro rubber, Nitrogen protection system (optional), can be anti-explosion applied to poisonous, flammable and explosive environment applications.

Users in the order shall determine the specific configuration of the actual process requirements (material, line cleaning, nitrogen, explosion-proof requirements, control mode), in order to meet the technical and economic requirements.

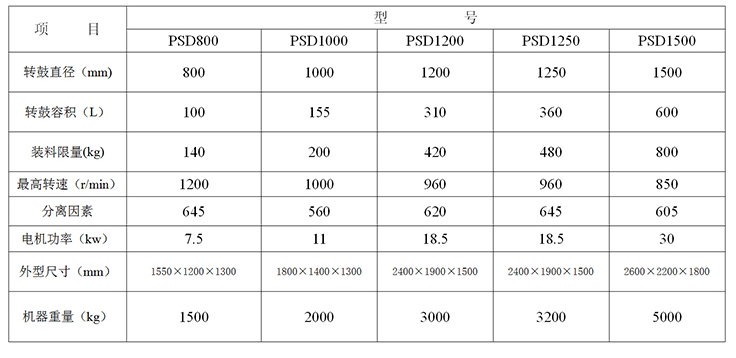

Technical parameters
