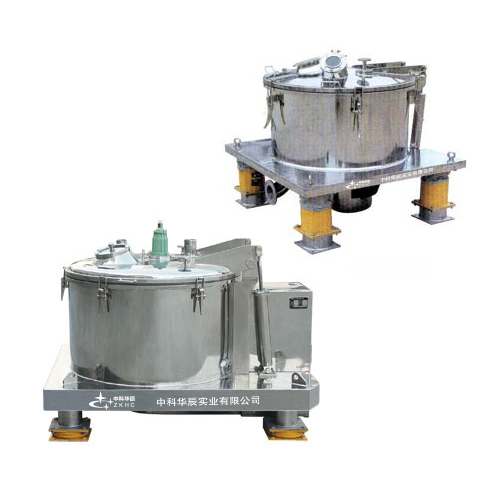

Main features:

1, reasonable structure design, structure transition is smooth, the surface has been polished, effective elimination of a health corner, external structural components, fasteners are made of stainless steel. Shell clamshell, can centrifuge drum shell and mezzanine space for thorough cleaning.

2, frame and case are welded structure, high bearing strength.

3, base for the flat-type structure, reducing the machine center of gravity, a smaller installation space, flat base serve as a platform, the operation is more convenient.

4. Configure liquid damping shock absorber, damping effect, simplifying routine maintenance.

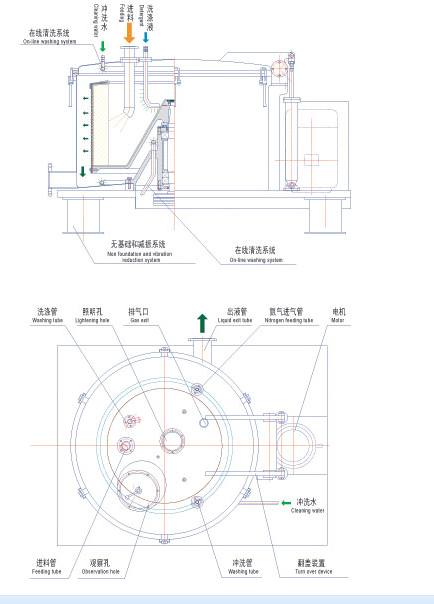

5, shell flip, set the feed pipe, wash pipe, mirrors, lighting hole. Cleaning system (optional), inside the centrifuge centrifuge shell wall, the inner and outer surfaces of the drum, sump surface is not visible parts cleaning to ensure cleanliness requirements, meet the GMP standard.

6, versatility, grain is not easy broken, both for the solid phase for the separation of particulate suspensions can also be used to separate the fibrous materials, a wide range.

7, using frequency conversion, stable, the separation coefficient is adjustable; non-contact dynamic braking system.

8, closed structure, sealing with silicone rubber or fluoro rubber. Nitrogen protection system (optional), can be anti-explosion applied to poisonous, flammable and explosive environment applications.

9, PBZ centrifuge using Direct proof motor, eliminating the friction belt drive could bring dust; and because the motor is mounted on the bottom of the machine, a smaller footprint.

Users in the order shall determine the specific configuration of the actual process requirements (material, line cleaning, nitrogen, explosion-proof requirements, control mode), in order to meet the technical and economic requirements.

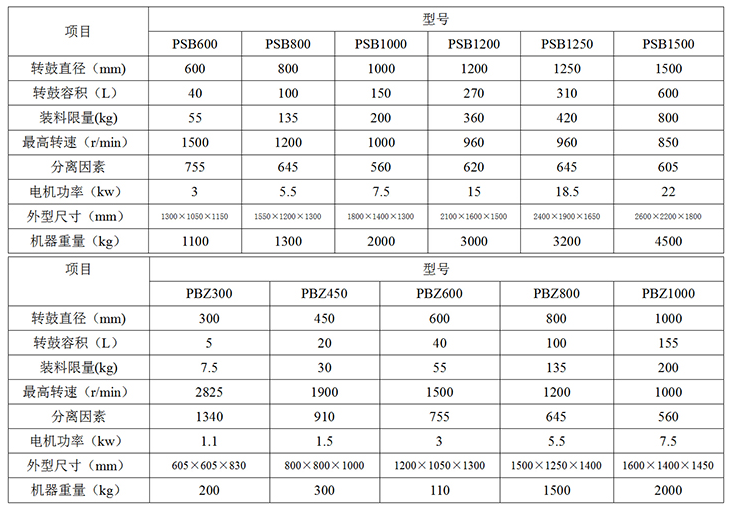

Technical parameters
